Description
Jewelry Laser Welding Machine 200 Watts
Feature
1. Jewelry laser spot welding machine, also known as (jewelry and jewelry welding machine), uses high-energy laser pulses to The material is locally heated and welded in a small area, and materials of different materials can also be welded in Together. Corrosion resistance, high temperature resistance, high photoelectric conversion efficiency, long service life. is widely used in Jewelry, gold and silver jewelry hole patching, spot welding pattern, inlaid parts and claw foot parts, etc.
Technical Parameters
|
Model
|
Flash weld -200W
|
|||
|
Max Laser Power
|
200W
|
|||
|
Laser Wavelength
|
1064nm
|
|||
|
Laser Welding Depth
|
0.1mm-0.8mm
|
|||
|
Repeat Frequency
|
0-50HZ
|
|||
|
Operation
|
Touch Screen
|
|||
|
Pulse width
|
0.5ms-20ms
|
|||
|
Light Spot Adjustment Range
|
1.8mm
|
|||
|
Workbench Load
|
25KG
|
|||
|
Visual System
|
Microscope / CCD Camera
|
|||
|
Colling System
|
Water Cooling
|
|||
|
Single Pulse Energy
|
150J
|
|||
|
Machine Size
|
1200*1100*1200mm
|
|||
|
Working Voltage
|
AC220VAC/380VAC±15%/50HZ/25A
|
|||

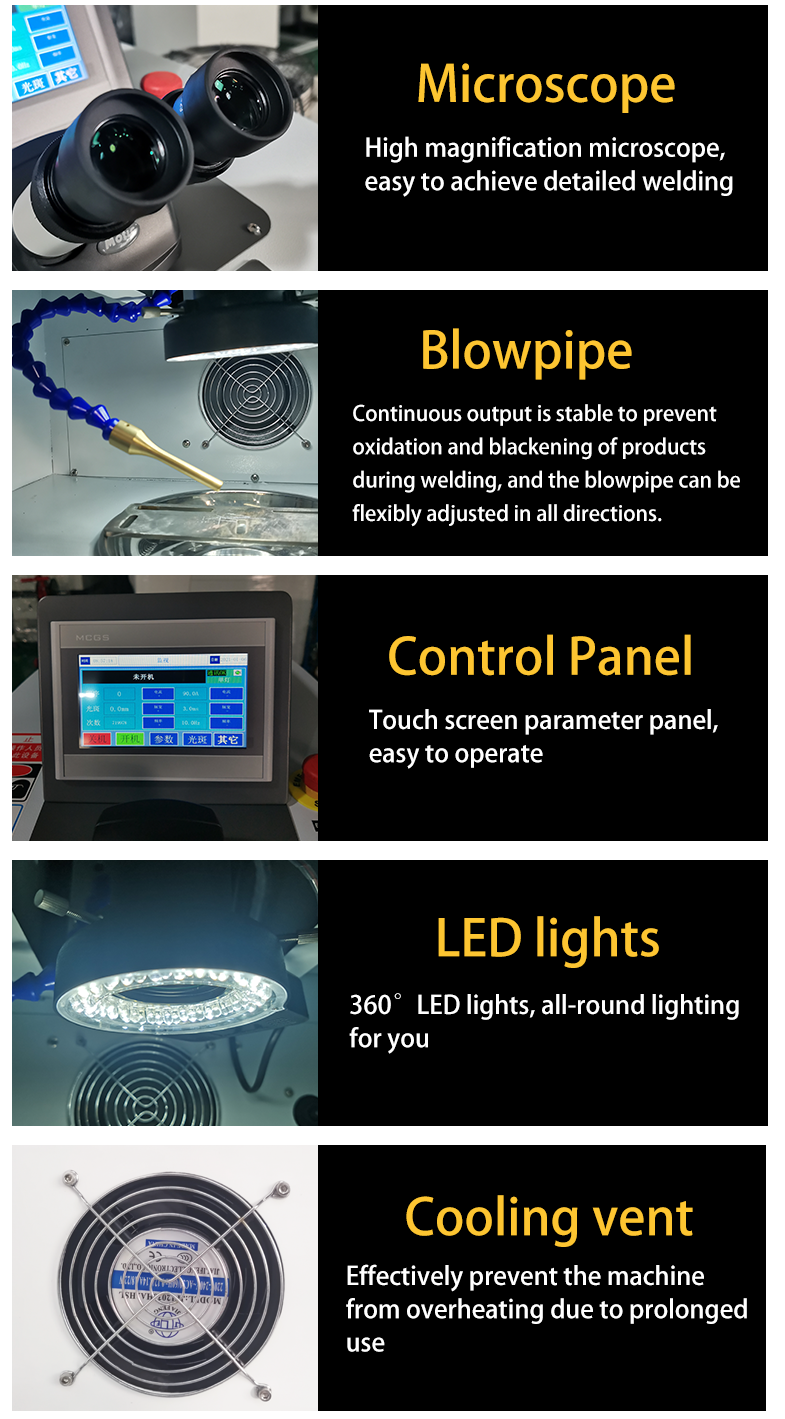

Details Images

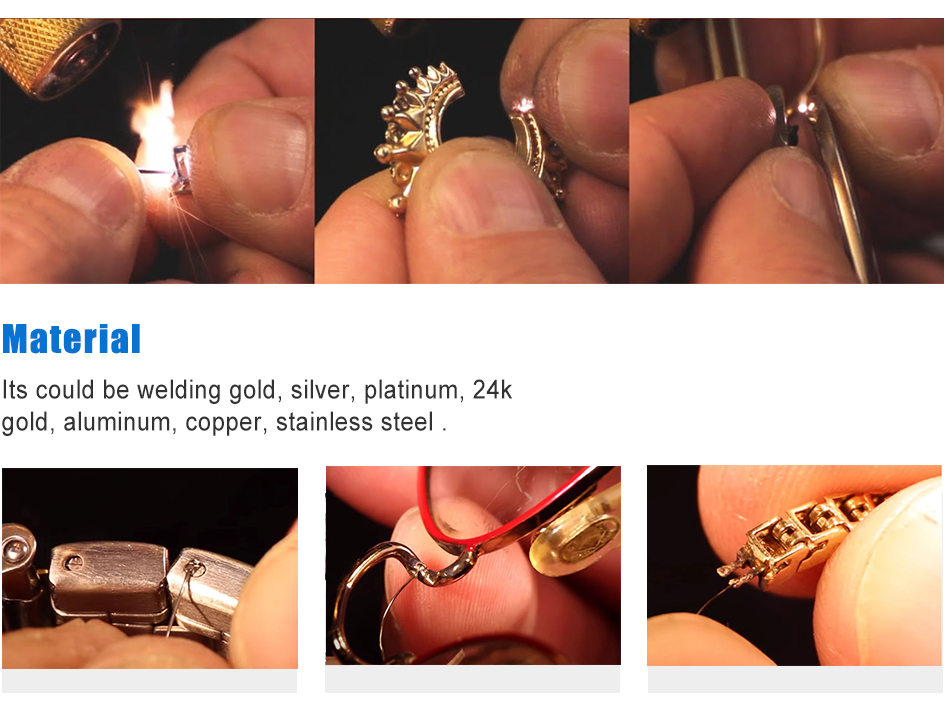

Product Application
Widely used in fine processing of small parts, such as rings. Pendants, bracelets, dentures, cell phones Charger interface, hardware, clocks, aviation, aerospace. Sporting Goods, Golf Heads, Medical Instruments, stainless steel, titanium alloy decorations, spectacle frames, especially for hole filling and spotting of gold and silver jewelry Welding gaps, inlaid parts, etc.
