FLASH WELD TP – W200

425,000.00480,000.00

Description

Table Top Laser Welder 200 Watt To Weld Gold Silver Jewelry

FEATURES AT A GLANCE

  • NEW DESIGN
  • STABLE POWER SUPPLY
  • HIGH QUALITY MICROSCOPE
  • SIMPLE CONTROL
  • EXTREMELY EFFICIENT
  • PRECISION WORK
  • FLEXIBILITY FOR MATERIAL

PRODUCT SPECIFICATIONS

System Platform: Table Top
Water cooler capacity: 3 liters
Laser power: 200W
Type of water: Distilled water or pure water
Laser type: YAG technology
Machine color: White
Wavelength: 1064nm
Microscope: MOTIC
Laser energy: 100 Joules
Radiation protection: Anti-laser acrylic material
Pulse width: 0.1-20ms
Type of gas: Argon gas
Frequency: 1-50Hz
Air pressure:3 to 5 bar / 0.3 to 0.5 Mpa
Focus distance: 100mm
Power required: AC 220V ±10% 50/60Hz
Spot diameter: 0.3 to 2mm
Total power:3kw
Flash lamp size:8*100*250mm
Warranty period: 12 months
Flash lamp lifespan:3,000,000 times
Machine dimension: 860x500x580mm
Laser bar size:6*130mm
Net Weight: 90kg
Cooling system: Built-in water cooler
Package dimension:960x530x600mm
PRODUCT CONFIGURATION

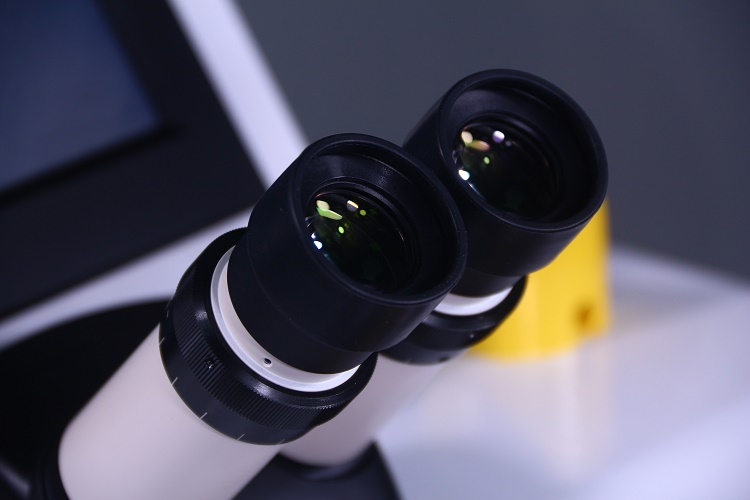

High-quality microscope
Good-performance welding head
Premium coaxial cable

Additional information

Visual System

Microscope, CCD Camera
